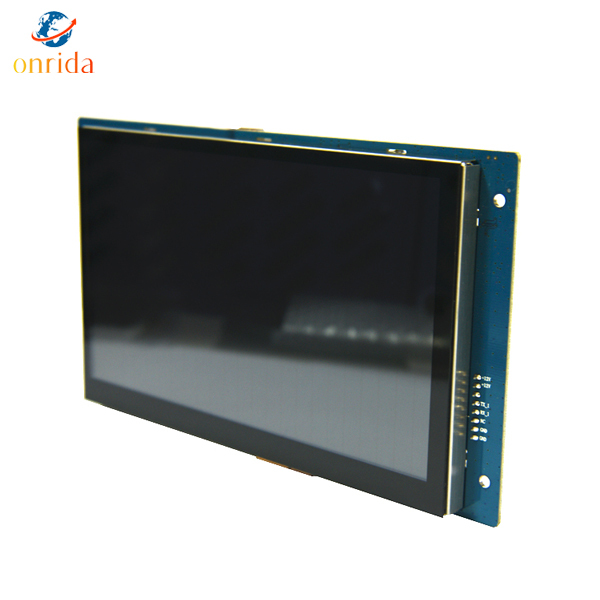

7 inch Android LCM 1024*600 / support Android 8.1 system / 4G Module option

1.Specification

1.1 IoT-3288E scope of application

NANO PX30 is an Android smart motherboard, which is generally suitable for smart display terminal products, video terminal products, and industrial automation terminal products, such as: advertising machines, digital signage, smart self-service terminals, smart retail terminals, O2O smart devices, industrial control hosts, and robotic devices Wait.

1.2 Product Overview

NANO PX30 uses Rockchip PX30 Cortex-A35 quad-core processor, equipped with Android8.1 system, clocked at 1.3 GHz, ultra-low power consumption. Adopt Mali-G31 GPU, support 1080P video encoding, H.265 hard decoding. Multi-channel video output, rich interfaces, and support for multiple peripheral expansion, it is your best choice for human-computer interaction and industrial control projects.

1.3 Product Features

◆ 4.3-inch standard ultra-thin board type, specially designed for self-service terminals, onboard dual LVDS + single LVDS / MIPI output interface, support dual LVDS different display.

◆ External plug-in 4G module interface, PCI-E 3G / 4G. Supports a variety of PCI-E 3G / 4G modules such as Huawei, ZTE, and Longshang (by default, Quectel EC20), and supports Internet access.

◆ Rich expansion interfaces. 7 USB interfaces (4 pins, 3 standard USB ports), 5 expandable serial ports (5 TTL serial ports), 6 GPIO interfaces, two I2C touch screen interfaces, which can meet the market requirements Requirements for various peripherals.

◆High definition. Dual LVDS supports up to 1920x1080 1080P decoding and various LCD display with LVDS / MIPI interface.

◆ Support Android system customization, provide system call interface API reference code, and perfectly support customer upper-layer application APP development and SDK.

◆ Perfect support for various mainstream touch screens such as infrared, optics, capacitance, resistance, touch film, etc. Support HID configuration of driver-free touch screen without debugging.

2.LCD size:7 inch

Resolution:1024*600

Interface：RGB

With CTP

View angle:all view

3.Support android 8.1 systerm,4G module option.
