Size23.1 inch
-
Resolution1920(RGB)X158
-
Active Area585.6X48.19mm
-
Outline Size597.4 x 62.1 x 15.8 mm
-
InterfaceLVDS
-
Working Temperature0°C-40°C
-
Strorage Temperature-20°C-60°C
-
Brightness400cd/m2

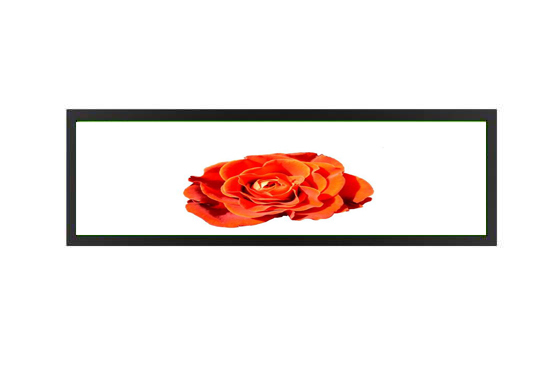

23.1 inch wide TFT Bar metro train LCD with Resolution 1920X158 / Brightness 300cd/m2
General Specifications
Item Specification Unit Note
Size:23.1 inch
Active Area : 585.6 (H) x 48.19 (V) (23.1” wide diagonal) mm
Max Resolution :1920(H) x158(V) -
Frame rate : 60 Hz
Driver Element : a-si TFT Active Matrix -
Pixel Number :1920 x R.G.B. x 158 pixel
Pixel Pitch : 0.15245 (H) x 0.4494 (V) mm
Pixel Arrangement : RGB Vertical Stripe -
Transmissive Mode : Normally Black -
Viewing Angle (H / V) Typical :178 / 178 degree
Brightness Typical :300 cd/m2
Contrast Ratio Typical : 5000 -

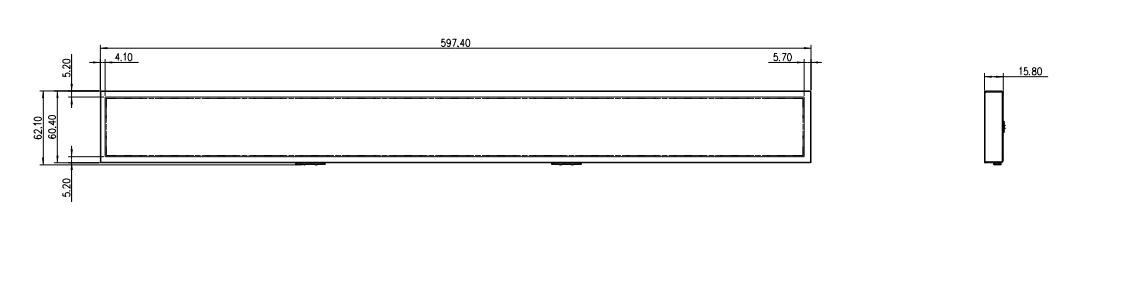

MECHANICAL DRAWING
