넳 넲

Size

0.95 inch
Resolution

120(RGB)X240
Active Area

10.8X21.6mm
Outline Size

12.8 x 27.35 x 0.75 mm
Interface

SPI
Working Temperature

-30°C-70°C
Strorage Temperature

-40°C-80°C
Brightness

350cd/m2

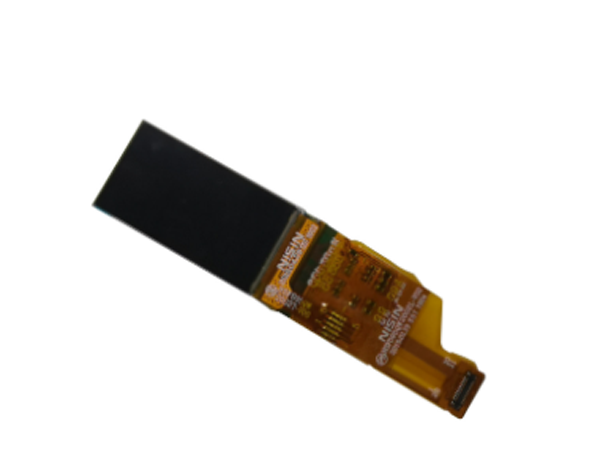

0.95 inch am oled with touch screen resolution 120x240 SPI interface

1 General Description

Display Color：RGB888

Dot Matrix：120*240

Driver IC：RM69310

Interface：4-SPI

Wide range of operating temperature：-40℃ to 70℃

2 Module Parameter

Display Size(Diagonal) :0.95 inch

Display type :AMOLED -

Resolution :120RGB x 240 -

View Direction : All Best image

Module Outline : 12.8(H) ×27.35(V)×0.75(T) (Note 1 ) mm

TP Outline :TBD mm

TP Viewing Area : TBD mm

TP Active Area : TBD mm

Active Area :10.8 (H)×21.6(V) mm

Display Colors : 16.7M -

Interface :4-SPI -

Driver IC: RM69310 -

Operating Temperature :-30～70 ºC

Storage Temperature :-40～80 ºC

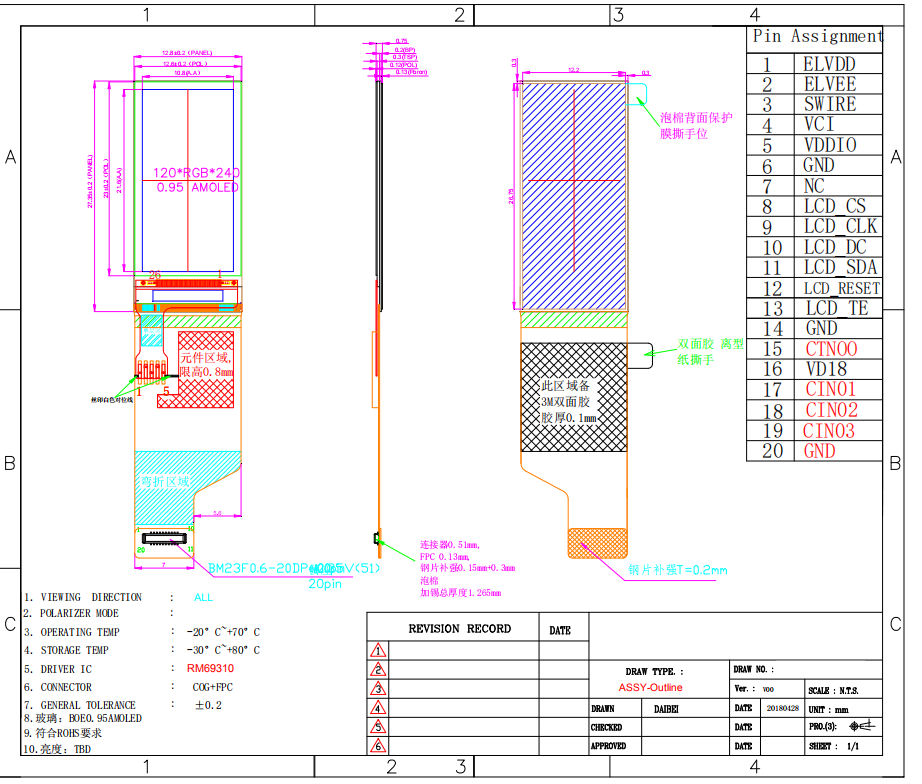

Mechanical Drawing:
